Infrared LED lamp beads

Becoming an LED packaging enterprise with high core value

Products
8mm concave infrared emission

8mm concave infrared emission



-Type: Inline LED
-Specification: straight plug

-Power: 0.06W

-Number of chips: single core

-Chip brand: Wafer

-Luminous angle: 120 °
-Glow color: invisible light






Contact us
Service hotline： 0755-29042031         E-mail： led_best@163.com

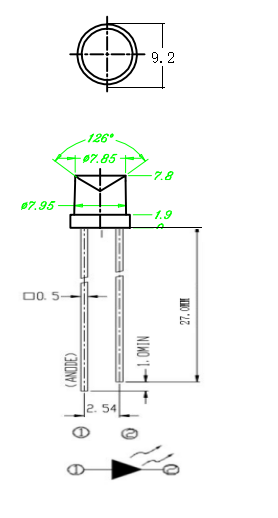

Drawing




Specifications


type Number

colour

Peak wave(nm)

Radiant intensity(Ie)

voltage(vf)

angle(deg)

current(mA)

8MMConcave head-Infrared emission

840-860

10-40

1.2-1.8





one hundred and twenty°





20mA

935-955

15-40

1.1-1.4




*The luminous angle of this lamp bead has other angles. Please consult customer service for detailed parameters


Application

Household appliances, medical devices, spatial optical communication, infrared cameras, fixed lasers, automatic card swiping systems for transportation, cameras, security monitoring, anti-theft alarms, infrared waterproofing, etc.
